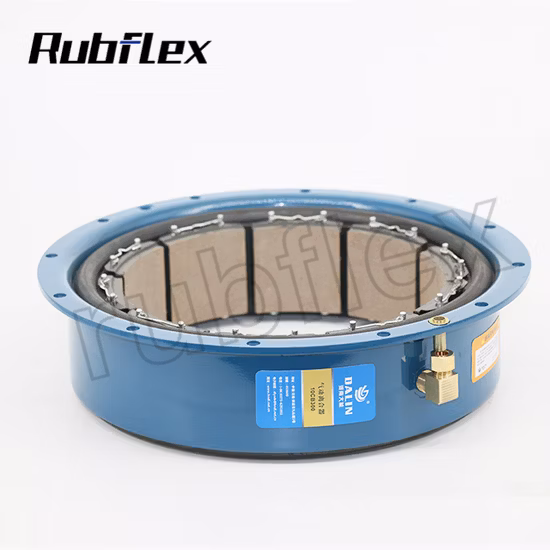

Rubflex Constricting Clutch and Brake 10CB300 for Printing Machinery

Overview

Basic Info.

Model NO.	10CB300
Specification	10cb300
Trademark	Rubflex
Origin	Xinxiang, Henan
HS Code	8483600090
Production Capacity	5000/Year

Product Description

Product Description

Pneumatic clutch is a friction clutch with compressed air as the power source for operation. It is generally used on equipment that needs to transmit large torque and change the rotation direction quickly, such as oil drilling machinery, ships, large mechanical presses,excavators,ballmills, rubber and plastic machinery, etc.

Features:1. Small appearance, but can transmit a lot of rotating force.2. It has strong durability and wear resistance.3. Long product life, safe and convenient operation.4. The clutch can be easily installed or uninstalled when transmitting power.

• How to Work

Typically, an engine comes with an output shaft, and this is located near the flywheel. The clutch is a type of device that comes in a system of grabbing disks or plates, which engage power from the machinery's flywheel and transfer this power to the transmission.

Detailed Photos

Product Parameters

Size	Friction LiningThickness	Maximum Speed	Moment Of Inertia	Weight	Friction Area	Minimum Drum Diameter	Friction Lining Thickness		Air Tube Cavity
							New	Born
3CB150	40.7	2000	0.00	0.8	90.3	74	5	1	0.12
4CB200	113	2000	0.01	1.1	148.4	99	3	1	0.17
5CB200	165	2000	0.02	1.6	193.5	124	5	1	0.28
6CB200	231	1800	0.04	3.2	232.2	150	4	2	0.32
8CB250	485	1800	0.08	4.1	393.5	201	3	2	0.49
10CB300	921	1800	0.25	8.6	587	251	5	2	0.82
12CB350	1500	1800	0.46	12	825.6	302	5	2	1.31
14CB400	2230	1800	0.71	14	1096.5	353	5	2	1.15
SI	N.m 5.2bar	rpm	kg.m2	kg	cm2	mm	mm	mm	dm3
